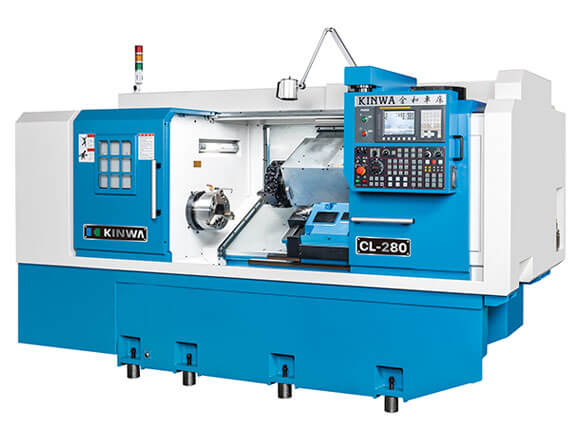

Máy Tiện Chính Xác Hạng Nặng CL-280
Chuck 8″, 10″ Swing 590 mm Between Center 580, 1180 mm Bar capacity 52, 80 mm Spindle motor 25 HP
| Swing over bed | φ 590 mm |
| Swing over carriage | φ 380 mm |
| Distance between centers | 1180 mm |
| Max. turning diameter | φ 450 mm |
| X – axis | 245 mm ( 230 + 15 ) |
| Z – axis | 1100 mm |
| Speed | 2200 rpm |
| Spindle nose | A2 – 8 |
| Spindle bore | φ 91 mm |
| Chuck | 10″, 12″ ( φ 80 mm ) |
| tools | Vertical 10 – station Servo turret |
| OD tool shank | φ 25 mm |
| ID tool shank ( Max. ) | φ 40 mm |
| X – axis | 16 m / min |
| Z – axis | 20 m / min |
| Tailstock stroke | 1000 mm |
| Quill diameter | 112 mm |
| Quill tpaer | MT # 4 |
| Quill stroke | 100 mm |
| Main motor (30 min.) | 25 HP ( βiIP 30 ) |
| Servo motor | X axis : 2.4 HP ( βiS 12 ) Z axis : 3.4 HP ( βiS 22 ) |
| Hydraulic unit motor | 2 HP |
| Coolant pump motor | 1 HP |
| Length of machine | 4350 mm |
| Width of machine | 1800mm |
| Height of machine | 1930 mm |
| Weight of machine | 5500 kgs |
- Specifications are subject to change without notice.
